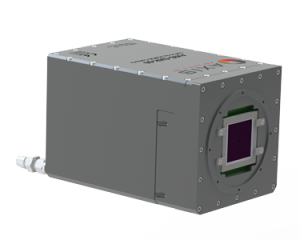

AXIS-SXR-40: Large-Area Soft X-ray in-vacuum sCMOS camera
AXIS-SXR-40 is a large-area soft x-ray sCMOS camera for measurements from 20 eV to 2 keV. It is based on a new 37mm x 37mm backside illuminated scientific CMOS (BSI-sCMOS) which is able to acquire low noise 16 Mpix images with a frame rate up to 16 Hz through its through its optical link.
It is built to sit entirely under vacuum.
The mechanics have been designed to allow the user to bring the detector surface as very close to the sample under study.
As for software, a generic control application is provided. A SDK and a Tango device are also available.
Applications:
DETECTOR SPECIFICATIONS :
| Available Sensors |
STANDARD GSENSE4040 BSI |
EUV-Enhanced GSENSE4040 BSI |
| Pixel | 4096 x 4096 (9 µm) | |
| Size | 36.9 mm x 36.9 mm | |
| Frame Rate | 16 fps (CameraLink) | |
| Exposure Time | 10 µs – 300 s | |
| Digital Encoder | 16-bit (High Dynamic Range); 12-bit (High Gain/Low Gain) | |
| Full Well Capacity | 39 ke- (Low Gain mode), 34 ke- (HDR mode), 1.3 ke- (High Gain mode) | |
| Readout Noise (rms) | 25 e- (Low Gain mode), 3.3 e- (HDR Mode), 2.6 e- (High Gain Mode) | |
| Dark Current | <0.1 e-/p/s (@ -20 °C) | |
| Typical QE |
|
 |
MECHANICAL SPECIFICATIONS
| Available Sensors |
STANDARD | BNL SPECIAL DESIGN
for the TARDIS experimental chamber at NSLS-II’s Coherent Soft X-ray Scattering (CSX) beamline |
COMPACT USB3 |
| Frame Rate | 16 fps (optical CameraLink) |
9 fps (optical USB3) |
|
| Mechanical configuration |
|
 |
 |
| Dimensions:
W x H x L |
13 x 13 x 23 cm | 17 x 13 x 17 cm | 13 x 16 x 14 cm |
| Weight (approx.) | 5 kg | 5 kg | 3 kg |
| Cooling | Water or LN2 | ||
| Vacuum compatibility | at least 3 x 10-7 mbar | ||
Standard Accessories
Available Options
Disclaimer
Axis Photonique reserves the right to modify product specifications without notice.
