Ultrafast Streak Cameras

Ultrafast Instrumentation for Chemistry and Physics

Fully integrated instrument for ultrafast high-resolution time-resolved spectroscopy from the x-rays to the infrared. They can be built in vacuum-compatible airboxes for use with the Ten Inch Manipulator (TIM) diagnostic insertion system found in large-scale laser facilities.

Standalone instruments including an internal PC
450 spatial resolution units along the slit
Averaging rate: single shot to 5 kHz
High sensitivity fiber-optic coupled readout
Remote-controlled over Ethernet (Web, OPC, TANGO, etc.)
Price range: $$$

AXIS-PX in airbox format for use with the Ten Inch Manipulator (TIM) diagnostic insertion system.

AXIS-PX in airbox in use at Orion Laser Facility (UK).

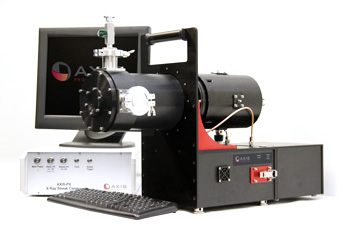

AXIS-PX • Subpicosecond X-Ray Streak Camera.

Sweeps 450 points with 700 fs time resolution
Interchangeable photocathodes

AXIS-PV • Ultrafast Optical Streak Camera

Sweeps 450 points with 1 ps time resolution
S20, S25 or S1 photocathode

GENERAL PURPOSE OPTICAL STREAK CAMERAS

Optical Streak Cameras designed for laser metrology with picosecond resolution

AXIS-QV • High-Performance Compact Streak Camera

Sweeps 150 points with 5 ps time resolution
75 μm electro-static slit
Internal intensifier
12-bit CCD coupled by fiber optics
Price range: $

AXIS-QVM • Lightweight Streak Camera

Easily couples with a spectrometer or a microscope
Sweeps 150 points with 5 ps time resolution
75 μm electro-static slit
Internal intensifier
Internal computer and remote control
12-bit CCD coupled by fiber optics
Price range: $

AXIS-SV • High-Sensitivity Streak Camera

Sweeps 250 points with 4 ps time resolution
75 μm electro-static slit
TE-cooled 16-bit CMOS coupled by fiber optics
Internal computer with remote control
Price range: $$

AXIS-NV • High Dynamic Range Streak Camera

Sweeps 1000 points with 100 ps time resolution
Mechanical input slit required
TE-cooled 16-bit CCD coupled by fiber optics
Internal computer with remote control
Price range: $$

CUSTOMIZED SYSTEMS:

Our goal is to help researchers get the experimental results they need. We configure and adapt each system to the specific needs of the end user. We will help you integrate the instrument in your laboratory and match it with your existing equipment. Please contact us to discuss how we can help you reach your scientific goals.

TESTS AND CALIBRATION:

Before shipping, every system is fully characterized and calibrated using the Advanced Laser Light Source of INRS-University of Quebec. This state-of-the-art facility offers a series of femtosecond laser systems that we use to test the ultrafast cameras from infrared to hard x-rays. A detailed report on the performance of each system is provided at delivery.
